SEAT Altea 2004-2015: the Compact MPV From Martorell
Photo: Vauxford / Wikimedia Commons, CC BY-SA 4.0
Built
2004–2015
Top power
155 kW (211 PS)

Which Altea to buy

Our verdict · Felix Hartmann

  • For low running costs: a 2009-2015 1.6 TDI Ecomotive, rated at 4.5 l/100 km.
  • For a petrol: the 1.2 TSI of 2010-2015, with 175 Nm and 5.7 l/100 km.
  • For space: the Altea XL, 187 mm longer, for families who need a bigger boot.
  • For bad roads and snow: an Altea Freetrack with four-wheel drive.
  • For speed: the FR with the 2.0 TFSI, 147 kW (200 PS), or the 125 kW 2.0 TDI.

The SEAT Altea is a compact MPV that SEAT built from 2004 to 2015, mainly at Martorell near Barcelona. Designed under Walter de'Silva on the Volkswagen Group PQ35 platform of the Golf V and Leon, it came as the standard Altea, the longer Altea XL from 2006 and the raised, often four-wheel-drive Altea Freetrack from 2007. About half a million were built, and SEAT named the Ateca SUV of 2016 as its replacement.

In short

  • One generation (5P), 2004-2015, facelifted in 2009; launched in March 2004 as the first SEAT with the brand's new design language.
  • Petrol engines from 63 kW (86 PS) to 155 kW (211 PS), diesels from 66 kW (90 PS) to 125 kW (170 PS), plus LPG and E85 versions.
  • Five seats, 409 to 1,320 litres of boot space in the standard car; the XL is 187 mm longer.
  • Euro NCAP awarded five stars in 2004.

SEAT Altea at a glance

Parameter SEAT Altea
Segment Compact MPV
Body Five-door MPV, five seats; Altea XL (long), Altea Freetrack (raised)
Platform Volkswagen Group A5 (PQ35)
Layout Front engine, front-wheel drive; four-wheel drive (Haldex) on most Freetracks
Built Martorell, Spain; also Solomonovo, Ukraine (Eurocar)
Production 2004-2015, about 500,000 cars
Design Walter de'Silva
Successor SEAT Ateca (2016)

The Altea was previewed by the Salsa Emoción concept, and a show car called the Altea Prototipo won a "Best Concept Car" award in 2003. The rest of the brand's range is in the SEAT catalogue.

Generation and variants

The Altea had only one generation, internally 5P, with a facelift in spring 2009. Two derivatives stretched the same body: one longer, one taller.

Generation Code Years Body styles Engines Power (kW / hp)
Altea 5P 2004-2015 compact MPV, XL, Freetrack 1.2-2.0 petrol, 1.6-2.0 TDI diesel, 1.6 LPG 63-155 kW / 84-208 hp
  • Altea (2004): the original five-door, 4,280 mm long on a 2,578 mm wheelbase. It went on sale in March 2004 and sold 31,223 units in its first year.
  • Altea XL (2006): 187 mm longer than the standard car, with more luggage space. It was shown at the 2006 Paris Motor Show and went on sale in November 2006.
  • Altea Freetrack (2007): raised SUV-style version with, on most versions, Haldex-based four-wheel drive. It measures 4,493 mm long and 1,622 mm high and weighs 1,586 kg.
  • Facelift (2009): ADAC describes it as an extensive update with technical and visual changes. In the following months the 1.6 TDI replaced the 1.9 TDI, and in 2010 a 1.2 TSI petrol joined the range.

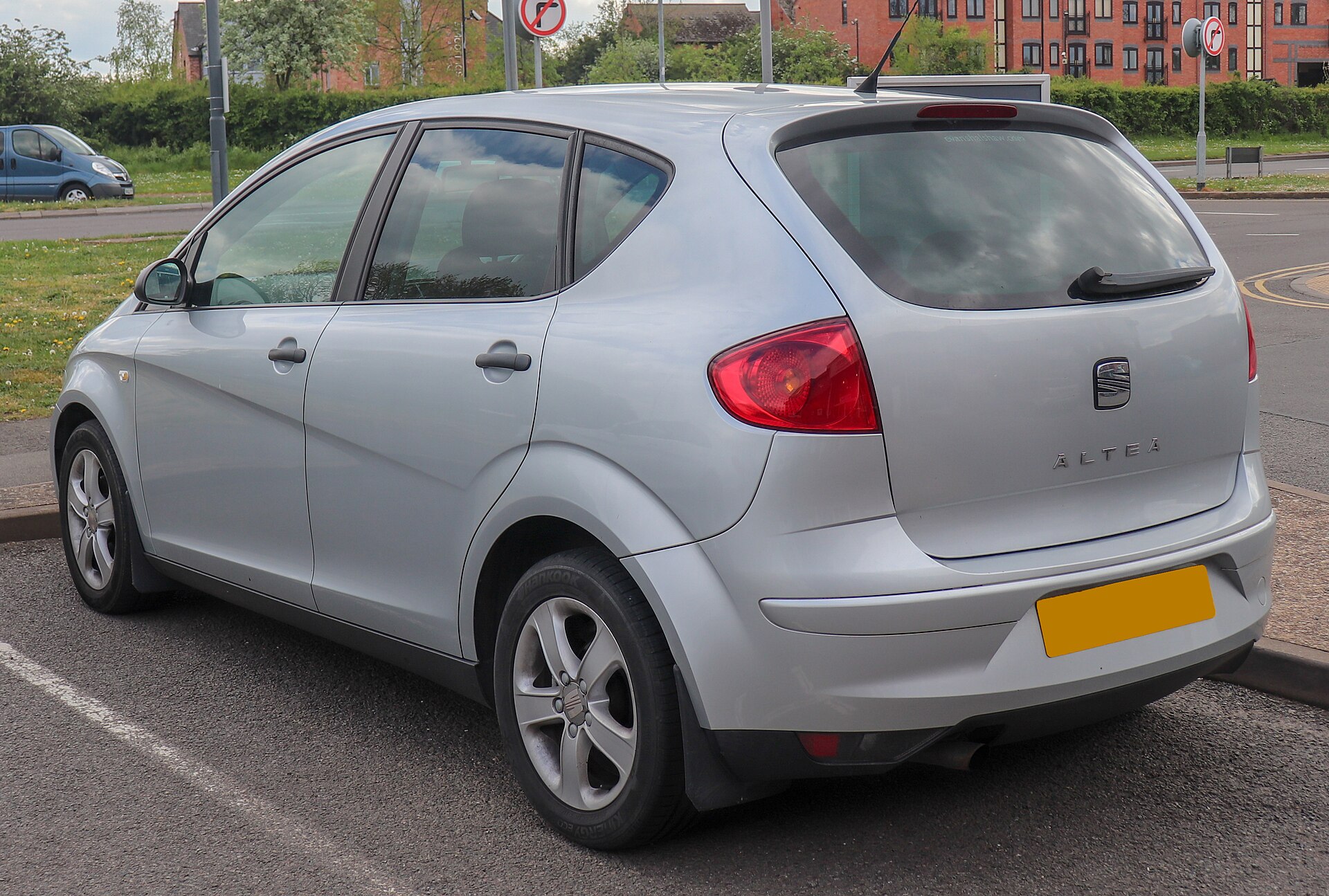

SEAT Altea, rear three-quarter view
Rear of a 2007 SEAT Altea. Photo: Vauxford / Wikimedia Commons, CC BY-SA 4.0

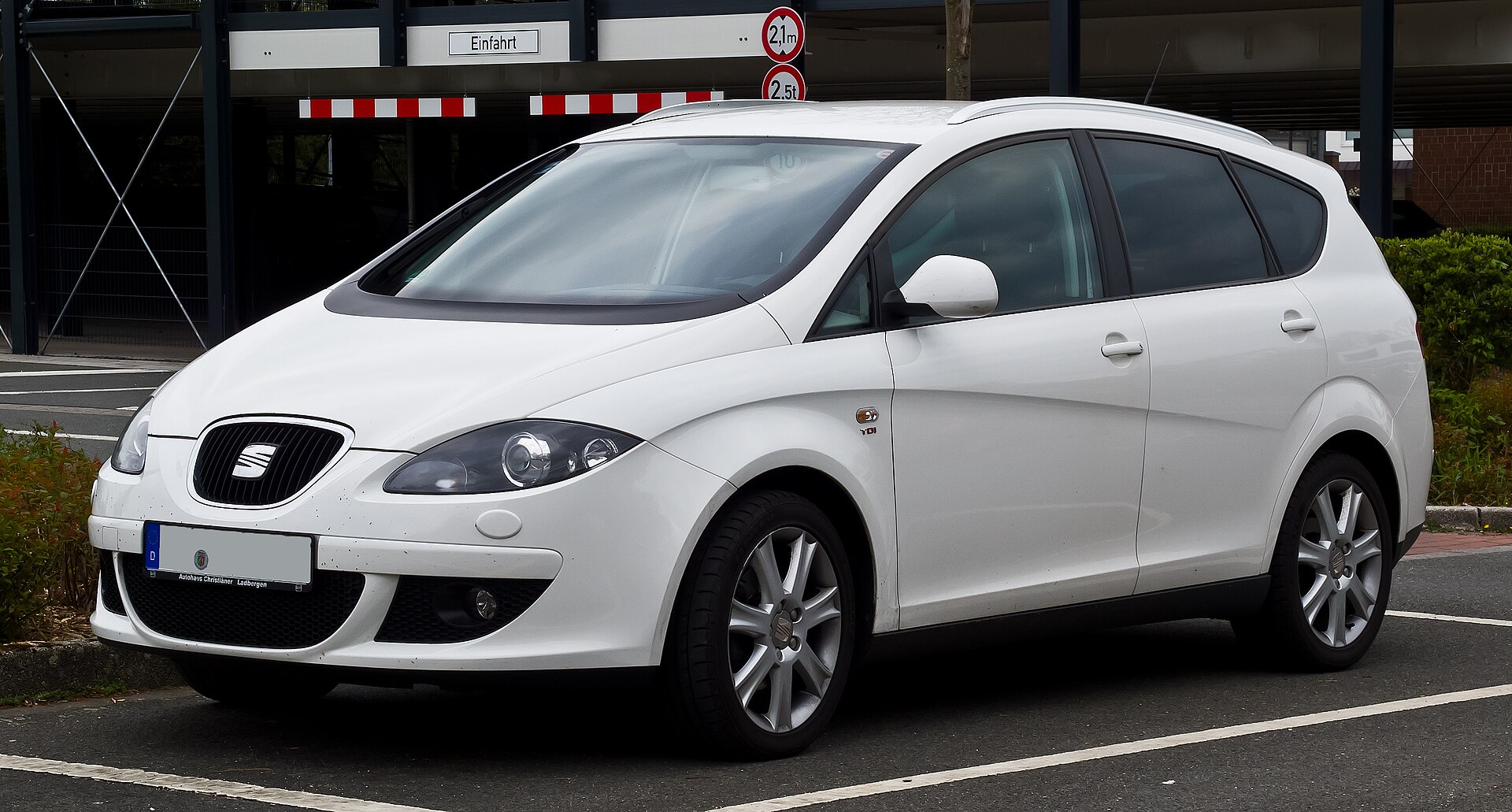

SEAT Altea XL, front three-quarter view
SEAT Altea XL 2.0 TDI, the long version. Photo: M 93 / Wikimedia Commons, CC BY-SA 3.0 de

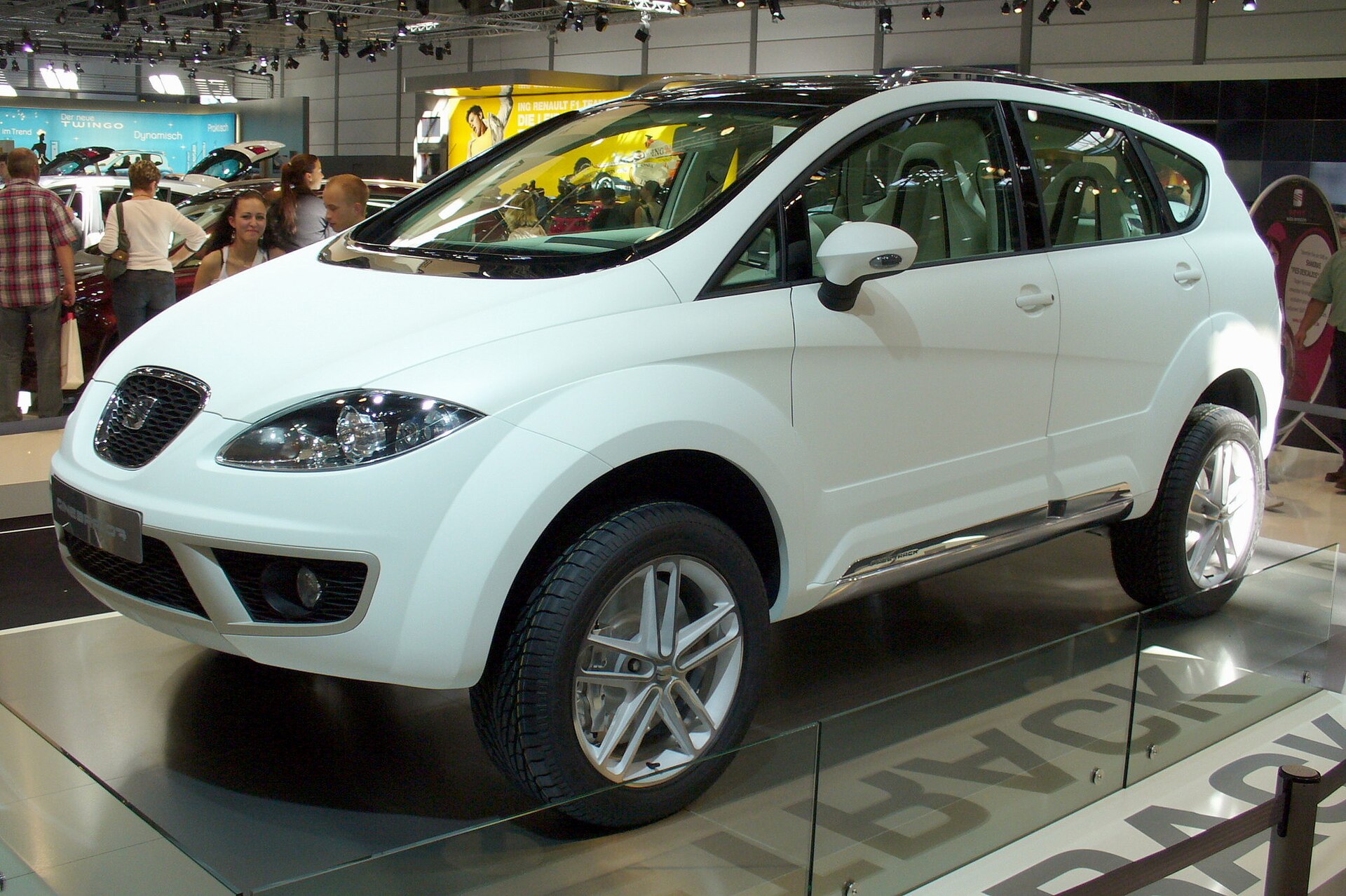

SEAT Altea Freetrack, front three-quarter view
SEAT Altea Freetrack with raised suspension. Photo: Thomas doerfer / Wikimedia Commons, CC BY-SA 3.0

Engines and gearboxes

Engine Fuel Power Notes
1.4 petrol 63 kW (86 PS) entry engine
1.6 / 1.6 MultiFuel petrol, E85 75 kW (102 PS) MultiFuel version runs on E85
1.6 LPG LPG / petrol 72 kW (98 PS) on gas, 75 kW (102 PS) on petrol 2010-2013 in Germany
1.2 TSI petrol 77 kW (105 PS) from 2010, Start&Stop
1.4 TSI petrol 92 kW (125 PS) from 2008
2.0 FSI petrol 110 kW (150 PS) 2004-2009
1.8 TSI (1.8T FSI) petrol 118 kW (160 PS) from 2007
2.0 TFSI FR petrol 147 kW (200 PS) FR version, 2006-2009
2.0 TSI petrol 155 kW (211 PS) most powerful Altea
1.6 TDI diesel 66-77 kW (90-105 PS) from 2009, incl. Ecomotive
1.9 TDI diesel 66-77 kW (90-105 PS) 2004-2010
2.0 TDI diesel 100-103 kW (136-140 PS)
2.0 TDI FR diesel 125 kW (170 PS) from April 2006

Gearboxes were five- or six-speed manuals, a tiptronic automatic, and six- or seven-speed DSG dual-clutch units.

Parameter 1.2 TSI (2010-2015) 1.6 TDI Ecomotive (2009-2015)
Engine 1,197 cc, four cylinders, turbo 1,598 cc, four cylinders, turbodiesel
Power 77 kW (105 PS) 77 kW (105 PS)
Torque 175 Nm 250 Nm
Gearbox 6-speed manual 5-speed manual
0-100 km/h 11.3 s 12.2 s
Top speed 184 km/h (114 mph) 183 km/h (114 mph)
Consumption (NEDC) 5.7 l/100 km, 132 g/km 4.5 l/100 km, 119 g/km
Kerb weight (EU) 1,360 kg 1,450 kg

Dimensions, space and boot

Parameter Metric Imperial
Length (Altea / Freetrack) 4,280 / 4,493 mm 168.5 / 176.9 in
Width (Altea / Freetrack) 1,768 / 1,788 mm 69.6 / 70.4 in
Height (Altea / Freetrack) 1,568 / 1,622 mm 61.7 / 63.9 in
Wheelbase 2,578 mm 101.5 in
Boot, Altea 409 l, 1,320 l with rear seat folded 14.4 / 46.6 cu ft
Fuel tank 55 l 12.1 imp gal

The figures are for the facelifted car in ADAC data; Wikipedia gives 4,280 mm, 1,770 mm and 1,560 mm for the standard Altea. The XL adds 187 mm of length. The Altea is a high-roof hatchback rather than a seven-seater: all versions have five seats. To see how it compares with a modern crossover, use the size comparison tool.

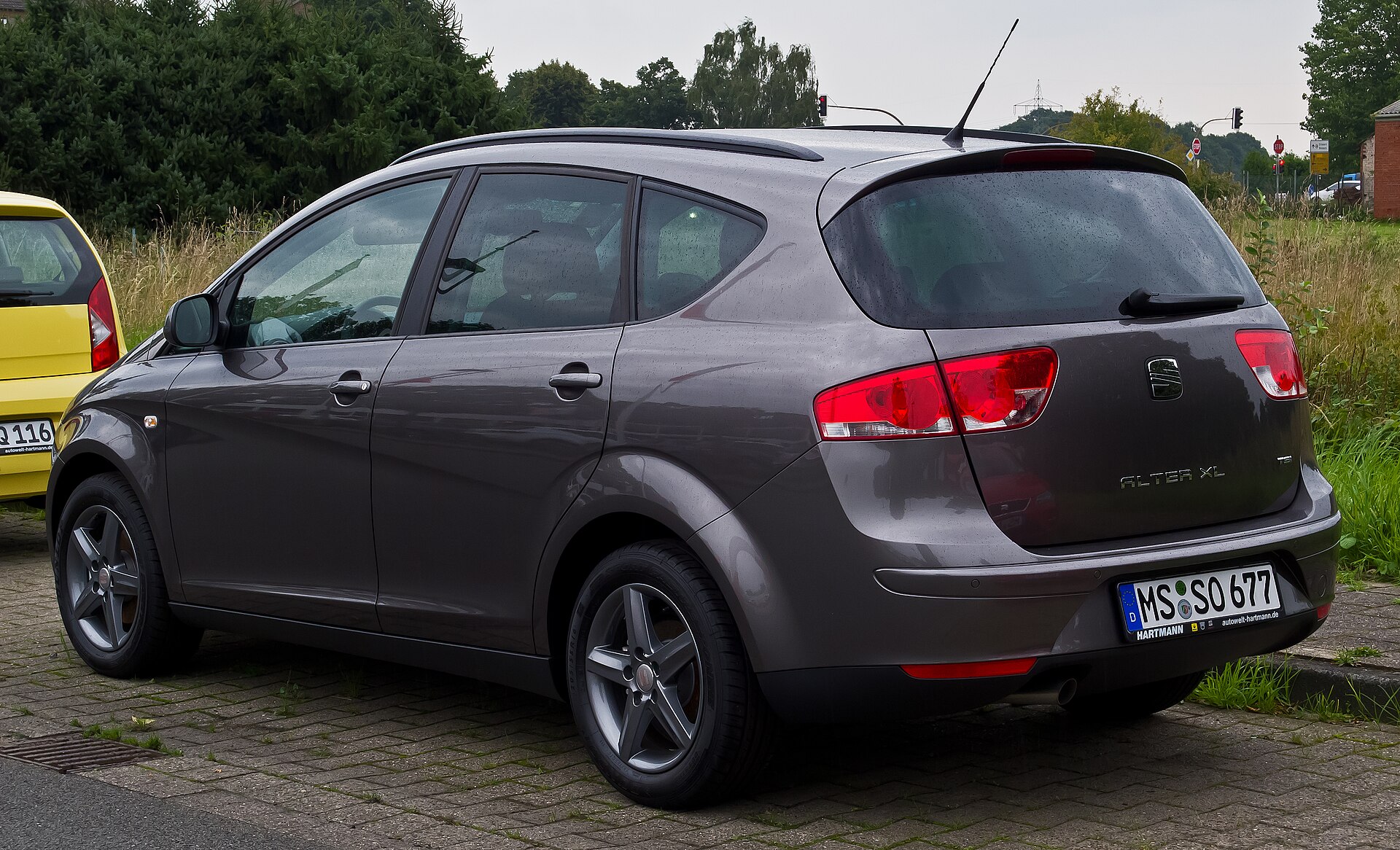

SEAT Altea XL, rear view
Facelifted Altea XL 1.2 TSI Sun, one of the last editions. Photo: M 93 / Wikimedia Commons, CC BY-SA 3.0 de

Running costs and prices

The most economical Altea was the 1.6 TDI Ecomotive, rated at 4.5 l/100 km and 119 g/km in the NEDC cycle; the 1.2 TSI petrol was rated at 5.7 l/100 km. In Germany the first 1.6 Reference of June 2004 cost EUR 17,990, and the cheapest facelifted Altea, the 1.4 with 63 kW, started at EUR 15,290 in April 2009 (ADAC list prices). The last special edition, the 2015 Altea Sun, cost EUR 19,290 with the 1.2 TSI.

Trims and equipment

German trim levels changed often: Reference and Stylance at launch, then Reference, Style and Sport after the 2009 facelift, with many limited editions such as Fresh, Rebell, Copa, Salsa, 4You and Sun. The sporty FR came with the 2.0 TDI (125 kW) or the 2.0 TFSI (147 kW). The Ecomotive versions were the economy models with the 1.6 TDI.

Safety

Euro NCAP tested the Altea in 2004 and awarded it five stars for adult occupant protection. That result is more than 20 years old, and the test has changed many times since, so it cannot be compared with current ratings; see the safety rankings for today's cars.

Reliability and known issues

We have not found a sourced reliability study for the Altea, so we do not list typical faults. Its engines and gearboxes are Volkswagen Group units also used in other models of the period.

Awards and the end of the Altea

The Altea won a Red Dot "Best of the Best" design award and was named "The World's Most Beautiful Automobile 2004" in Milan. Demand faded in its last years: in 2014, only 439 Alteas and 445 Altea XLs were sold in the UK. SEAT announced the end of production on 21 August 2015, and its chief executive presented the Ateca SUV, launched in February 2016, as the Altea's replacement.

Rivals

In its day the Altea competed with the Volkswagen Golf Plus, its own platform sister, and with compact MPVs such as the Renault Scenic, Opel Zafira, Ford C-Max and Citroen C4 Picasso.

Model Engines Power (hp) Boot (l) Price from (EUR)
SEAT Altea 1.2-2.0 petrol, 1.6-2.0 diesel 84-208 409 15,290 (Germany, 2009)
Volkswagen Golf Plus - - - -
Renault Scenic - - - -
Ford C-Max - - - -

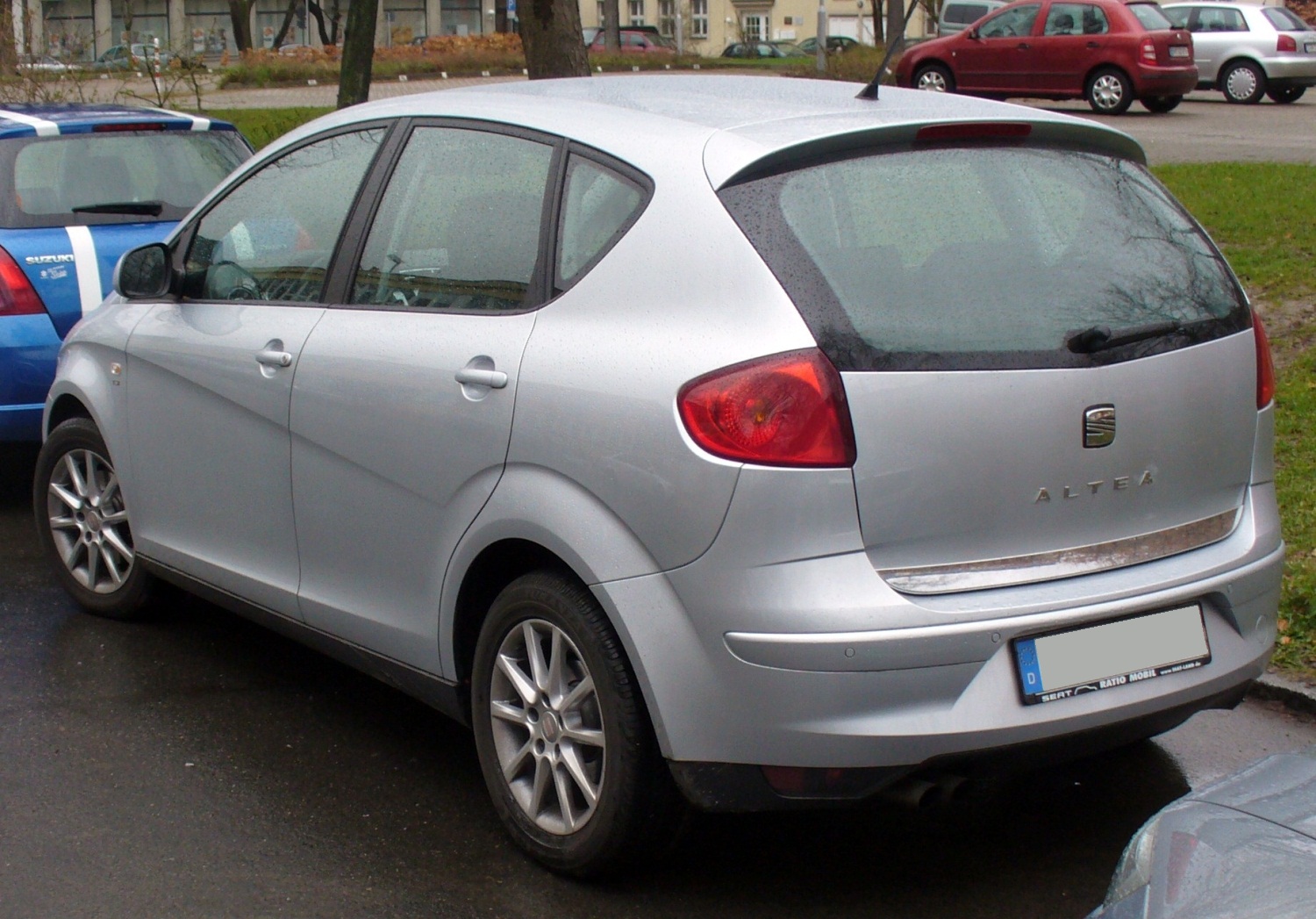

SEAT Altea facelift, rear view
Facelifted SEAT Altea TSI from the rear. Photo: Thomas doerfer / Wikimedia Commons, CC BY 3.0

SEAT Altea in our rankings

In production longer than 61% of ranked nameplates in the 1CARS catalog (No. 395 of 1082).

FAQ

How many generations of the SEAT Altea are there?

One: the Altea 5P, built from 2004 to 2015 and facelifted in 2009, with the long Altea XL and the raised Altea Freetrack as variants.

What is the SEAT Altea based on?

The Volkswagen Group PQ35 (A5) platform, also used by the Golf V and the SEAT Leon of the same period.

How big is the Altea's boot?

409 litres with five seats and 1,320 litres with the rear seat folded (standard Altea, ADAC). The Altea XL is 187 mm longer and has more luggage space.

Is the SEAT Altea safe?

It received five stars from Euro NCAP in 2004.

What replaced the SEAT Altea?

SEAT ended production in 2015 and presented the Ateca SUV, launched in 2016, as its replacement.
