Size comparison · drawn to scale

Hyundai Tucson III vs Kia Sportage NQ5: size comparison

  • Length Sportage NQ5 40 mm2 in longer
  • Width Sportage NQ5 16 mm0.6 in wider
  • Height About the same height
  • Boot Sportage NQ5 78 L2.8 cu ft more

Car 1 blue, solid outline

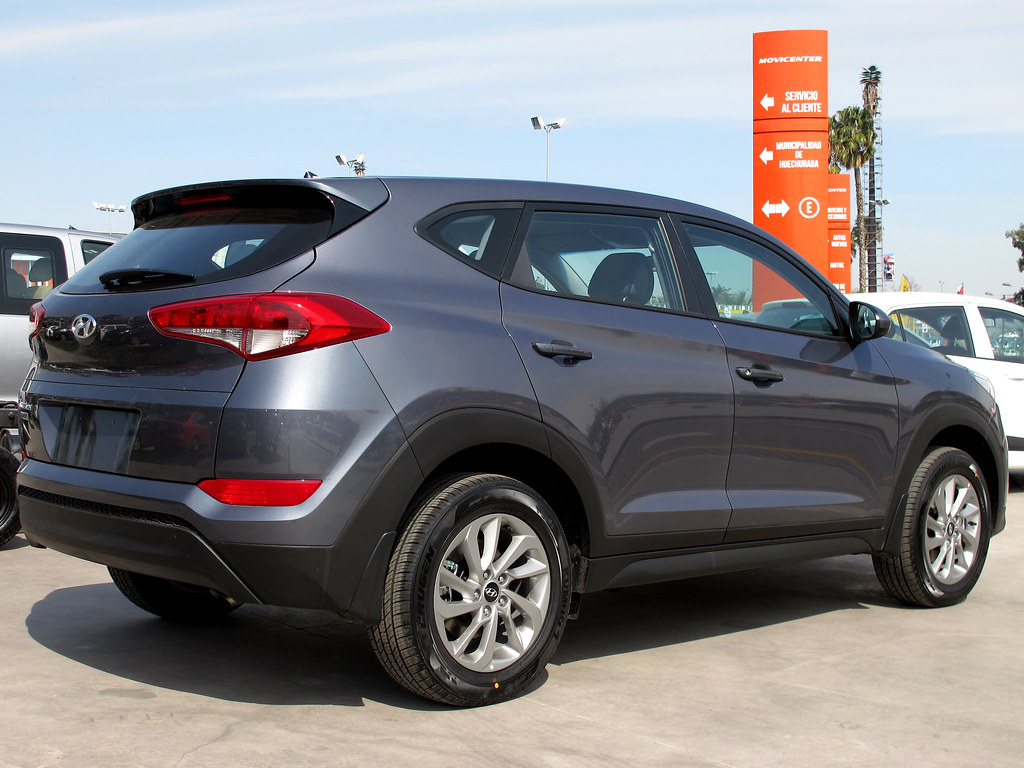

Tucson III Hyundai · 2015–2018 · SUV Tucson III 4,475 × 1,849 × 1,651 mm14 ft 8 in × 6 ft 1 in × 5 ft 5 in Change

Car 2 coral, dashed outline

Sportage NQ5 Kia · 2021–present · SUV Sportage NQ5 4,515 × 1,865 × 1,650 mm14 ft 10 in × 6 ft 1 in × 5 ft 5 in Change
Change cars

Search any brand, model or year. Models we have no dimensions for yet are shown in grey.

  • Car 1, blue, solid outline: Tucson III
  • Car 2, coral, dashed outline: Sportage NQ5
0 m1 m2 m3 m4 m5 m6 m1 m0 ft1 ft2 ft3 ft4 ft5 ft6 ft7 ft8 ft9 ft10 ft11 ft12 ft13 ft14 ft15 ft16 ft17 ft18 ft19 ft20 ft1 ft2 ft3 ft4 ft5 ftWheelbase 2,670 mmWheelbase 8 ft 9 inLength 4,475 mmLength 14 ft 8 in1,651 mm5 ft 5 inWheelbase 2,680 mmWheelbase 8 ft 10 inLength 4,515 mmLength 14 ft 10 in1,650 mm5 ft 5 in

Scale about 1:22 on a desktop screen · grid 500 mm1 ft · in Overlay both cars start at the front bumper Side view: dashed lines mark the axles

Dimensions and difference

The Tucson III is 40 mm2 in shorter, 16 mm0.6 in narrower and 1 mm0.0 in taller than the Sportage NQ5. Its wheelbase is 10 mm0.4 in shorter.

DimensionTucson IIISportage NQ5Difference, car 1 vs car 2
Length4,475 mm14 ft 8 in14 ft 8 in4,475 mm4,515 mm14 ft 10 in14 ft 10 in4,515 mm −40 mm−2 in −0.9%
Width1,849 mm6 ft 1 in6 ft 1 in1,849 mm1,865 mm6 ft 1 in6 ft 1 in1,865 mm −16 mm−0.6 in −0.9%
Height1,651 mm5 ft 5 in5 ft 5 in1,651 mm1,650 mm5 ft 5 in5 ft 5 in1,650 mm +1 mm+0.0 in +0.1%
Wheelbase2,670 mm8 ft 9 in8 ft 9 in2,670 mm2,680 mm8 ft 10 in8 ft 10 in2,680 mm −10 mm−0.4 in −0.4%
Footprint8.27 m²89.1 sq ft89.1 sq ft8.27 m²8.42 m²90.6 sq ft90.6 sq ft8.42 m² −0.15 m²−1.6 sq ft −1.7%
Boot513 L18.1 cu ft18.1 cu ft513 L591 L20.9 cu ft20.9 cu ft591 L −78 L−2.8 cu ft −13.2%
Kerb weight1,454–1,662 kg3,206–3,664 lb3,206–3,664 lb1,454–1,662 kg1,526–1,905 kg3,364–4,200 lb3,364–4,200 lb1,526–1,905 kg −72 kg−159 lb −4.7%

Width without mirrors. Figures come from the catalog version pages; the drawing uses the same numbers. Body outlines are generic for the body type — proportions are exact, styling is not. Weight difference compares the lightest versions.

Garage and parking

A typical single garage is about 5.5 × 3.0 m18 ft 1 in × 9 ft 10 in inside; a parking bay about 5.0 × 2.5 m16 ft 5 in × 8 ft 2 in. Room to open a door: about 600 mm2 ft each side.

Tucson III

Single garage
Tight 1,025 mm3 ft 4 in to spare in length, 576 mm1 ft 11 in each side
Parking bay
Tight 525 mm1 ft 9 in to spare in length, 326 mm1 ft 1 in each side

Sportage NQ5

Single garage
Tight 985 mm3 ft 3 in to spare in length, 568 mm1 ft 10 in each side
Parking bay
Tight 485 mm1 ft 7 in to spare in length, 318 mm1 ft 1 in each side

Check your own garage with these cars

Frequently asked questions

Which is bigger, the Hyundai Tucson III or the Kia Sportage NQ5?

The Kia Sportage NQ5 is the bigger car by footprint (length × width). The Tucson III is 40 mm shorter, 16 mm narrower and 1 mm taller than the Sportage NQ5. Its wheelbase is 10 mm shorter.

Will the Hyundai Tucson III and the Kia Sportage NQ5 fit in a standard garage?

In a typical single garage of 5.5 × 3.0 m inside: The Hyundai Tucson III fits, but it is tight to get out (1,025 mm to spare in length, 576 mm each side). The Kia Sportage NQ5 fits, but it is tight to get out (985 mm to spare in length, 568 mm each side). Widths are without mirrors; check your own garage with our garage checker.

Which has the bigger boot?

The Kia Sportage NQ5: 591 L against 513 L in the Hyundai Tucson III (seats up, as quoted by the maker).
