KamAZ-5460 specs

KamAZ-5460 11.8 Tractor unit 16-sp manual

294 kW400 PS394 hp1,766 Nm2003–present

diesel · 16-speed manual · Tractor unit · engine 740.63-400

Read the full story of the KamAZ-5460

Updated Report an error

KamAZ-5460

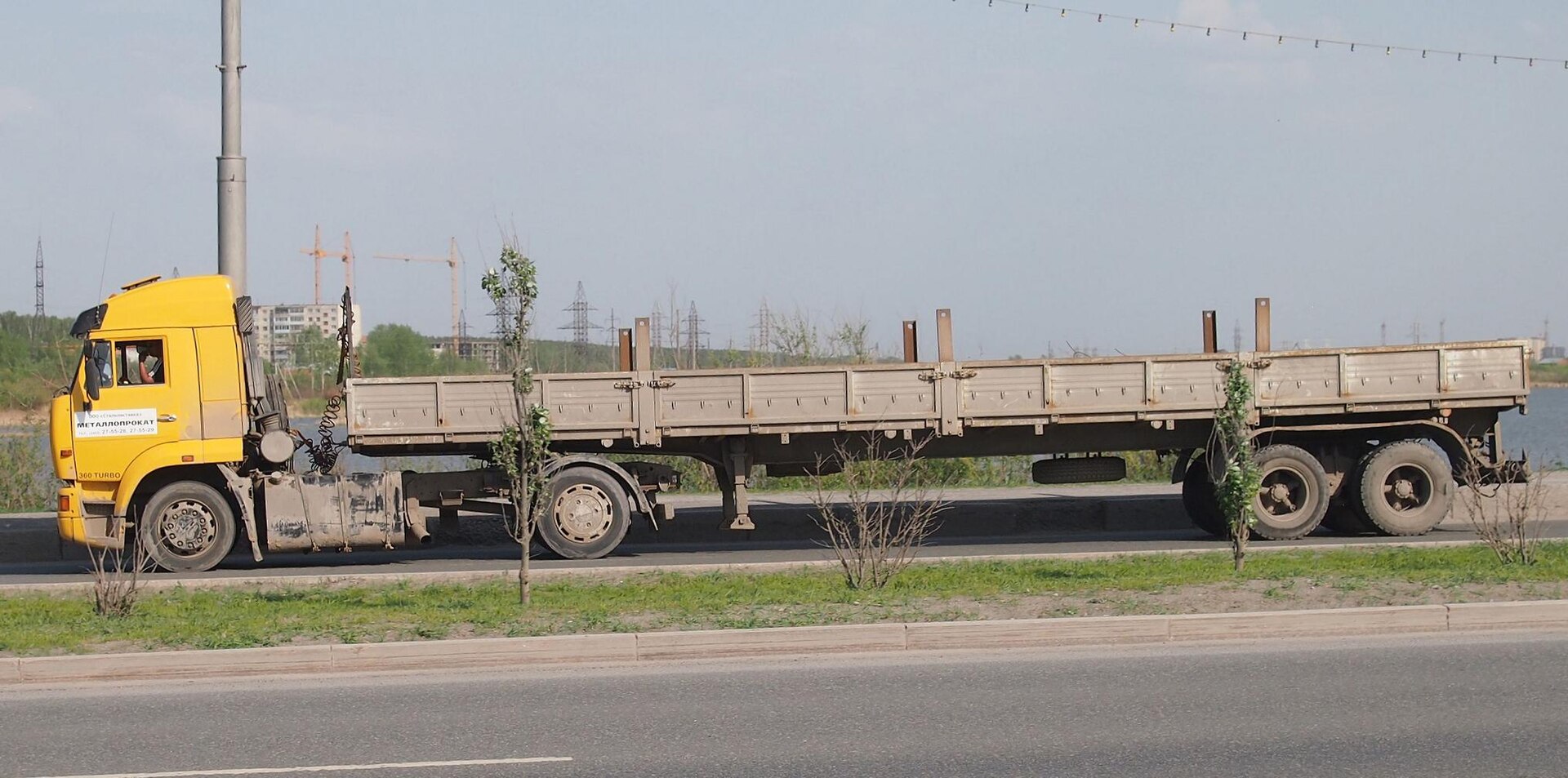

Photo: Alexey8601 / Wikimedia Commons, CC BY-SA 4.0
Power
294 kW 400 PS · 394 hp
Torque
1,766 Nm 1,303 lb-ft
Top speed
90 km/h
Length
6,340 mm

Built 2003–present, the KamAZ-5460 11.8 740.63-400 diesel tractor unit develops 294 kW (400 PS) and 1,766 Nm of torque from an 11.8-litre diesel engine. A 16-speed manual gearbox sends the KamAZ-5460 11.8 740.63-400 diesel's drive to the rear wheels.

According to our catalog data, the KamAZ-5460 11.8 740.63-400 diesel reaches 90 km/h. Rivals worth a side-by-side look against the KamAZ-5460 11.8 740.63-400 diesel: the Volvo FH.

Dimensions drawing

To scale · width without mirrors

    Length 6,340 mmLength 20 ft 10 in3,130 mm10 ft 3 inWheelbase 3,950 mmWheelbase 13 ft 0 inWidth 2,550 mmWidth 8 ft 4 in

    rulers in mminches, grid 500 mm1 ft Side view: dashed lines mark the axles

    Engine

    Engine code740.63-400
    FuelDiesel
    Displacement11,760 cm³ 11.8 l · 718 cu in
    Power294 kW 400 PS · 394 hp
    Torque1,766 Nm 1,303 lb-ft

    Transmission

    GearboxManual
    Gears16
    DriveRear-wheel drive

    Performance

    Top speed90 km/h 56 mph

    Dimensions and weight

    Length6,340 mm 249.6 in
    Width2,550 mm 100.4 in
    Height3,130 mm 123.2 in
    Wheelbase3,950 mm 155.5 in
    Fuel tank500 l 132.1 US gal

    Production

    Body typeTractor unit
    Years2003–present
    GenerationKamAZ-5460 (2003–present)

    KamAZ 740.63-400 engine Compare size All KamAZ-5460 versions All KamAZ spec sheets
