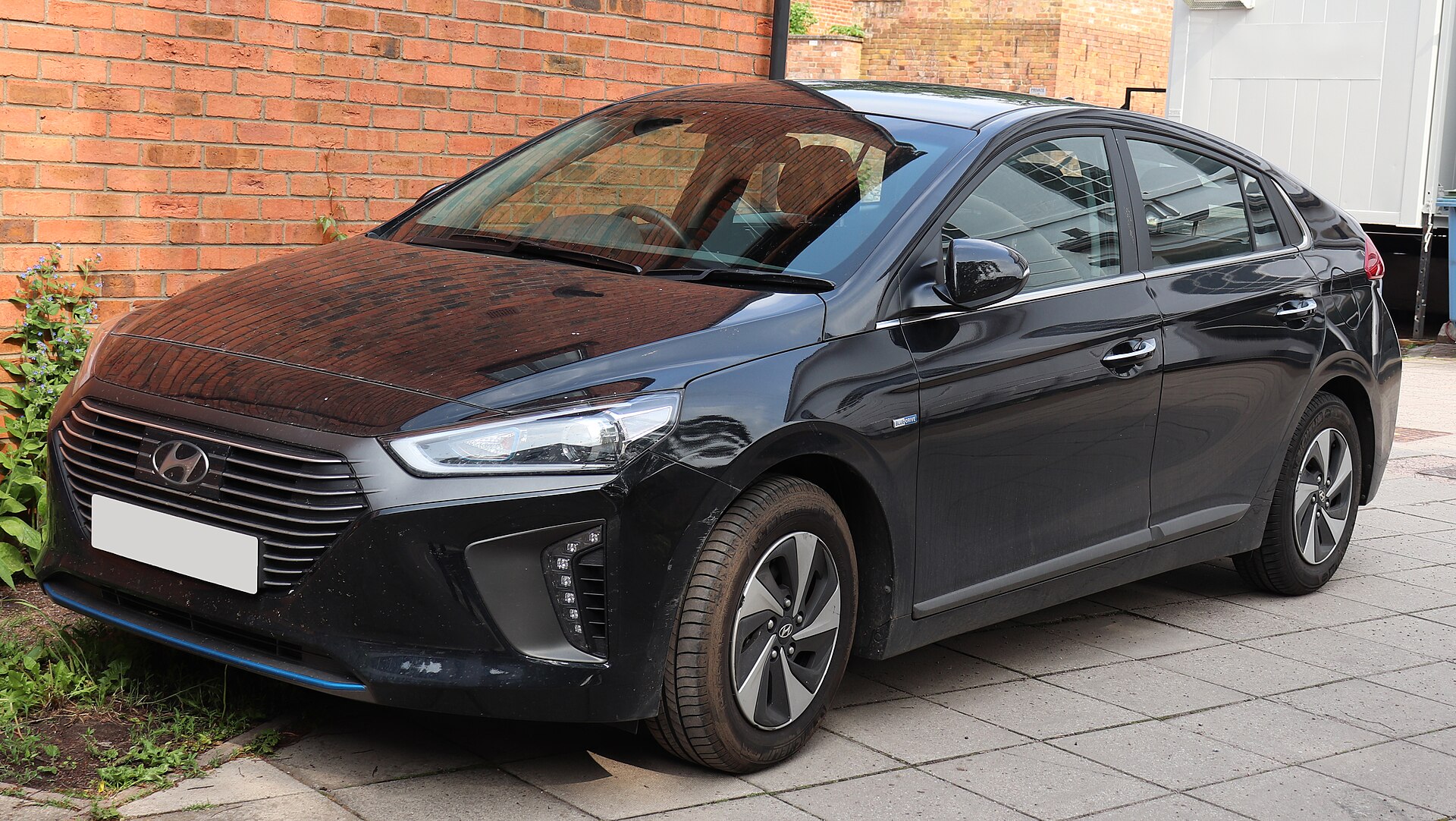

Hyundai Ioniq 1.6 GDi Plug-in Liftback
2017
Read the full story of the Hyundai Ioniq
Updated Report an error
- Electric range
- 47 km
- Length
- 4,470 mm
The Hyundai Ioniq 1.6 GDi Plug-in liftback is powered by a four-cylinder plug-in hybrid powertrain. A six-speed dual-clutch gearbox sends the Ioniq 1.6 GDi Plug-in's drive to the front wheels.
On paper, it covers up to 47 km on a charge.
Dimensions drawing
To scale · width without mirrors
Zoom in to read the measurements — or see the table below.
grid 500 mm1 ft Side view: dashed lines mark the axles
Engine
| Fuel | Plug-in hybrid |
|---|---|
| Cylinders | 4 |
Transmission
| Gearbox | Dual-clutch |
|---|---|
| Gears | 6 |
| Drive | Front-wheel drive |
Performance
| Electric range | 47 km 29 mi |
|---|
Dimensions and weight
| Length | 4,470 mm 176.0 in |
|---|---|
| Width | 1,820 mm 71.7 in |
| Height | 1,450 mm 57.1 in |
| Wheelbase | 2,700 mm 106.3 in |
| Battery capacity | 9 kWh |
Production
| Body type | Liftback |
|---|---|
| Years | 2017 |
| Generation | Ioniq (2016–2022) |
Compare size All Ioniq versions All Hyundai spec sheets
Data sources
Data checked by an editor against the sources below.
Data: 13 of 25 fields · 1 source · data changed 14 Oct 2026
