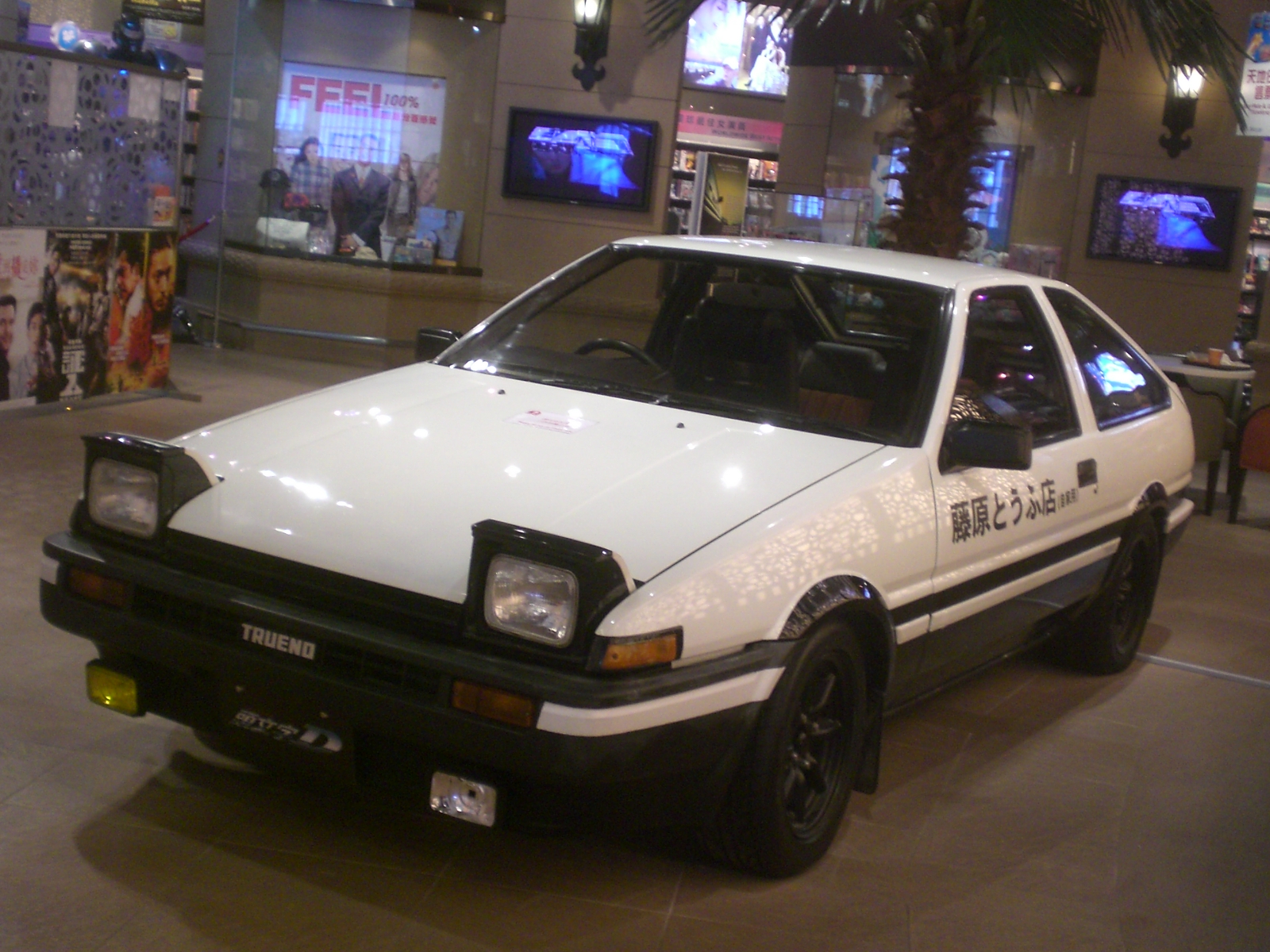

Toyota Sprinter Trueno AE86 1.6 GT APEX 1.6 (gross) Liftback
96 kW131 PS129 hp149 Nm1983–1987
Read the full story of the Toyota Sprinter Trueno AE86
Updated Report an error
- Power
- 96 kW 131 PS · 129 hp
- Torque
- 149 Nm 110 lb-ft
- Kerb weight
- 900 kg
- Length
- 4,205 mm
A 1.6-litre four-cylinder petrol engine with 96 kW (131 PS) and 149 Nm of torque powers the Toyota Sprinter Trueno AE86 1.6 GT APEX (gross) liftback. In the Sprinter Trueno AE86 1.6 GT APEX (gross), power reaches the rear wheels through a five-speed manual gearbox.
According to our catalog data, the Sprinter Trueno AE86 1.6 GT APEX (gross) weighs 900 kg and offers 145 PS per tonne.
Dimensions drawing
To scale · width without mirrors
Zoom in to read the measurements — or see the table below.
grid 500 mm1 ft Side view: dashed lines mark the axles
Engine
| Engine code | 4A-GEU |
|---|---|
| Fuel | Petrol |
| Displacement | 1,587 cm³ 1.6 l · 97 cu in |
| Cylinders | 4 |
| Power | 96 kW 131 PS · 129 hp |
| Torque | 149 Nm 110 lb-ft |
Transmission
| Gearbox | Manual |
|---|---|
| Gears | 5 |
| Drive | Rear-wheel drive |
Dimensions and weight
| Length | 4,205 mm 165.6 in |
|---|---|
| Width | 1,625 mm 64.0 in |
| Height | 1,335 mm 52.6 in |
| Wheelbase | 2,400 mm 94.5 in |
| Kerb weight | 900 kg 1,984 lb |
Production
| Body type | Liftback |
|---|---|
| Years | 1983–1987 |
| Generation | Sprinter Trueno AE86 (1983–1987) |
Toyota 4A-GEU engine Compare size All Sprinter Trueno AE86 versions All Toyota spec sheets
Data sources
Data checked by an editor against the sources below.
Data: 16 of 25 fields · 1 source · data changed 23 Oct 2026
