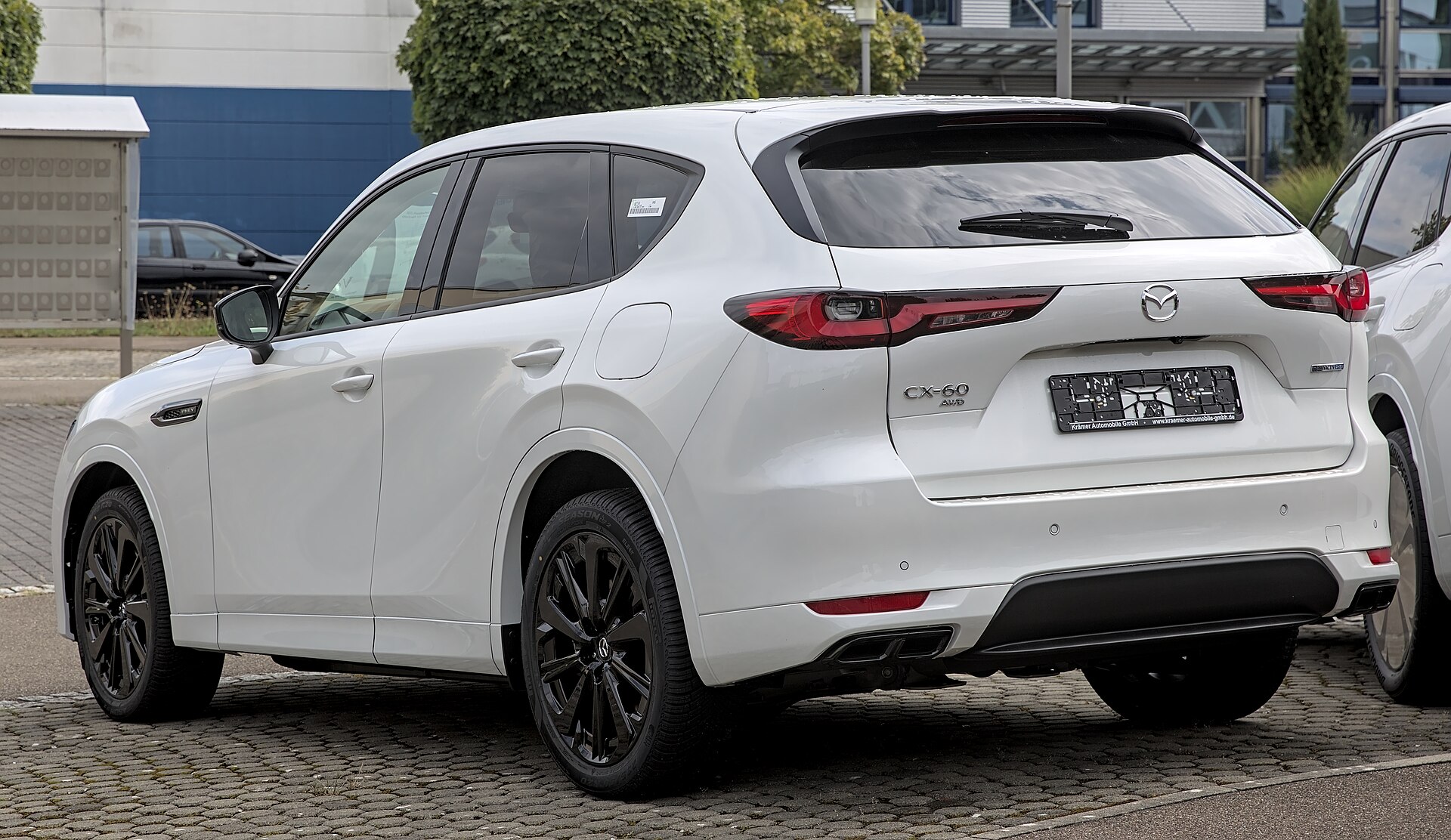

Mazda CX-60 KH 2.5 e-Skyactiv PHEV AWD SUV
241 kW328 PS323 hp500 Nm2022
Read the full story of the Mazda CX-60 KH
Updated Report an error
- Power
- 241 kW 328 PS · 323 hp
- Torque
- 500 Nm 369 lb-ft
- 0–100 km/h
- 5.8 s
- Fuel consumption
- 3.8 l/100 km
- Kerb weight
- 2,055 kg
- Boot volume
- 570 l
Under the bonnet of the Mazda CX-60 KH 2.5 e-Skyactiv PHEV AWD SUV sits a four-cylinder plug-in hybrid powertrain, good for 241 kW (328 PS) and 500 Nm of torque. An eight-speed automatic transmission sends the CX-60 KH 2.5 e-Skyactiv PHEV AWD's drive to all four wheels.
It is the most powerful of the 3 versions in the CX-60 KH range, with 64% more output than the entry 3.3 e-Skyactiv D 200 (147 kW). The CX-60 KH 2.5 e-Skyactiv PHEV AWD is also the quickest to 100 km/h (5.8 s) and the most economical (3.8 l/100 km). The car reaches 200 km/h, covers up to 63 km on a charge and weighs 2,055 kg.
What the figures favour in the CX-60 KH 2.5 e-Skyactiv PHEV AWD
- Most powerful version of the CX-60 KH: 241 kW (328 PS)
- Quickest 0–100 km/h in the CX-60 KH range: 5.8 s
- Lowest fuel consumption in the CX-60 KH range: 3.8 l/100 km
- Best power-to-weight in the range: 159 PS per tonne
- Large boot: 570 l
Dimensions drawing
To scale · width without mirrors
Zoom in to read the measurements - or see the table below.
grid 500 mm1 ft Side view: dashed lines mark the axles
Engine
| Fuel | Plug-in hybrid |
|---|---|
| Cylinders | 4 |
| Power | 241 kW 328 PS · 323 hp |
| Torque | 500 Nm 369 lb-ft |
Transmission
| Gearbox | Automatic |
|---|---|
| Gears | 8 |
| Drive | All-wheel drive |
Performance
| 0–100 km/h | 5.8 s 0–62 mph |
|---|---|
| Top speed | 200 km/h 124 mph |
| Fuel consumption | 3.8 l/100 km 74.3 mpg UK · 61.9 mpg US |
| Energy consumption | 14.4 kWh/100 km 23.2 kWh/100 mi |
| CO₂ emissions | 85 g/km |
| Electric range | 63 km 39 mi |
Dimensions and weight
| Kerb weight | 2,055 kg 4,531 lb |
|---|---|
| Boot volume | 570 l 20.1 cu ft |
| Fuel tank | 50 l 13.2 US gal |
| Battery capacity | 18 kWh |
Production
| Body type | SUV |
|---|---|
| Years | 2022 |
| Generation | CX-60 KH (2022–present) |
