S-Class W222 specs

Mercedes-Benz S-Class W222 560 Sedan

345 kW469 PS463 hp700 Nm2017–2020

petrol · Sedan · engine M176

Updated Report an error

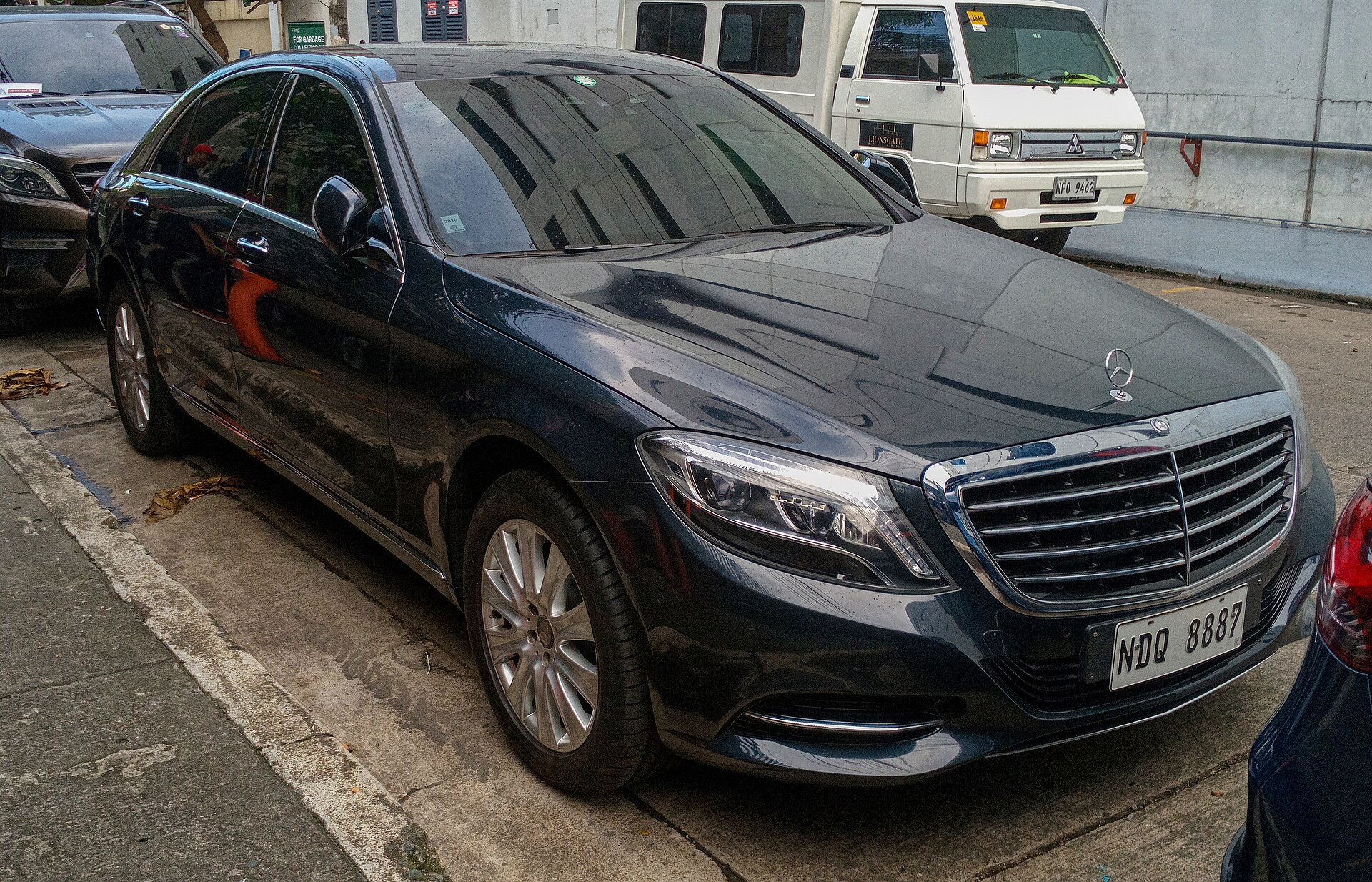

Mercedes-Benz S-Class W222
Photo: Ethan Llamas / Wikimedia Commons, CC BY-SA 4.0
Power
345 kW 469 PS · 463 hp
Torque
700 Nm 516 lb-ft
0–100 km/h
4.7 s
Fuel consumption
11.2 l/100 km
Kerb weight
2,135 kg
Length
5,146 mm

The Mercedes-Benz S-Class W222 4.0 S 560 uses a 4.0-litre eight-cylinder petrol engine rated at 345 kW (469 PS) and 700 Nm of torque, in sedan form.

Within the S-Class W222 line-up of 5 petrol versions, it delivers 3% more power than the entry 4.6 S 500 (335 kW) and 118 kW less than the 6.0 S 65 AMG (463 kW). The S-Class W222 4.0 S 560 is also the best on power-to-weight (220 PS per tonne). According to our catalog data, the S-Class W222 4.0 S 560 needs 4.7 s to reach 100 km/h, averages 11.2 l/100 km and weighs 2,135 kg.

S-Class W222 4.0 S 560: measurable strengths

  • Best power-to-weight in the range: 220 PS per tonne
  • Sports-car acceleration: 0–100 km/h in 4.7 s

Dimensions drawing

To scale · width without mirrors

    Length 5,146 mmLength 16 ft 11 in1,496 mm4 ft 11 inWheelbase 3,035 mmWheelbase 9 ft 11 inWidth 1,899 mmWidth 6 ft 3 in

    rulers in mminches, grid 500 mm1 ft Side view: dashed lines mark the axles

    Engine

    Engine codeM176
    FuelPetrol
    Displacement4,000 cm³ 4.0 l · 244 cu in
    Cylinders8
    Power345 kW 469 PS · 463 hp
    Torque700 Nm 516 lb-ft

    Performance

    0–100 km/h4.7 s 0–62 mph
    Fuel consumption11.2 l/100 km 25.2 mpg UK · 21.0 mpg US
    CO₂ emissions255 g/km

    Dimensions and weight

    Length5,146 mm 202.6 in
    Width1,899 mm 74.8 in
    Height1,496 mm 58.9 in
    Wheelbase3,035 mm 119.5 in
    Kerb weight2,135 kg 4,707 lb

    Production

    Body typeSedan
    Years2017–2020
    GenerationS-Class W222 (2013–2020)

    Mercedes-Benz M176 engine Compare size All S-Class W222 versions All Mercedes-Benz spec sheets

    Data sources

    Data checked by an editor against the sources below.

    Data: 16 of 25 fields · 2 sources · data changed 23 Oct 2026

    • Wikipedia - Mercedes Benz S Class (W222)
    • EEA CO₂ monitoring 22021 (European Environment Agency, CC BY 4.0): CO₂, fuel consumption, EU mass (WLTP, median of new EU registrations)
